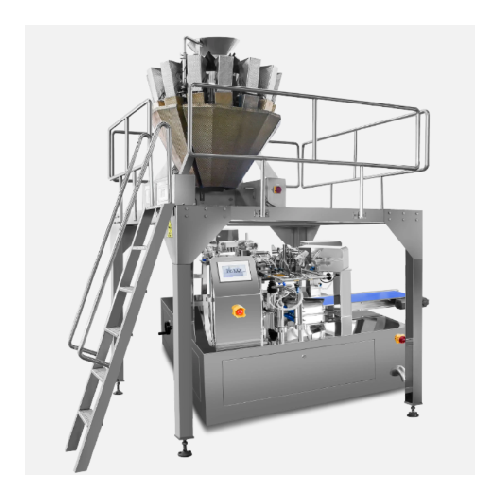

The Whole Rotary pouch packing machine with Five Parts

Packing Machine

Suitable for granules and free-flowing powders such as sugar, salt, rice, coffee, sesame, fodder, etc.

Components

• Packing Machine
• Multihead Weigher
• Working Platform
• Z Type Conveyor with Vibration
• Finished Product Conveyor

Rotary Pouch Filling Machine Work Process:

1. Bag Giving: Feed many pouches or bags into the bag magazine. Our main bag magazine can move up and down, making it easy to feed bags when it moves down. When it moves up, a mechanical arm with two vacuum caps takes the bag up and transmits it to the mechanical gripper on the rotary table.
2. Date Coding: Different types of coding machines are configured according to actual production and packaging needs to print the date and batch number on the packaging bag.
3. Bag Opening: While the suction cup opens the packaging bag, air is sprayed from the upper nozzle to blow open the bottom of the packaging bag. The packaging bag support plate is inserted into the opening of the packaging bag, and the packaging bag enters the next station. After inserting the bag support plate into the bag opening, the detection of whether there is a packaging bag and whether the opening of the bag is opened is completed. If there is no packaging bag or there is no opening to open the packaging bag, the next station will not feed.
4. Filling and Vibrating 1: According to different packaging materials, different feeders are configured at this station to complete the automatic or semi-automatic delivery of materials.
5. Filling and Vibrating 2: According to different packaging materials, different feeders are configured at this station to complete the automatic or semi-automatic delivery of materials.
6. Product Settling After Filling by Vibrating:
7. Heat Sealing 1: To seal the pouch or bag mouth with a couple of heat sealing air bars. The sealing pattern can be customized (net or straight lines).
8. Heat Sealing 2: To make the sealing stable and prevent wrinkling with a couple of cold press, then output the finished product automatically.
9. Forming and Product Output:
