Automatic Rotary Pouch Packaging Machine

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Port:

Shunde

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: High-Tech

Types Of: Multi-Function Packaging Machine

Applicable Industry: Food &Amp; Beverage Factory, Farms, Food &Amp; Beverage Shops, Other

Out-of-warranty Service: Video Technical Support, Online Support

Status: New

Features: Filling, Wrapping, Labeling, Laminating, Sealing

Application: Food, Beverage, Commodity, Medical, Machinery &Amp; Hardware

Type Of Packaging: Cartons, Cans, Bottles, Barrel, Stand-Up Pouch, Bags, Pouch, Film

Packaging Materials: Plastic, Paper, Metal, Glass

Degree Of Automation: Automatic

Power Type: Electric

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: High-Accuracy

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Model: HT-200/300

Bag Sizes: L100-360mm W 70-210mm/L 200-400mm W 180-300mm

Packing Speed: 20-60 bag/min / 20-50bag/min

Place Of Origin: Guangdong, China

Warranty Of Core Components: 1 Year

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Engine

Material: Stainless Steel or Carbon Steel

Brand Name: High-Tech

Supply Ability & Additional Information

Packaging: Wooden box

Transportation: Ocean,Land

Supply Ability: 30 Set/Sets per Month

Port: Shunde

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Wooden box

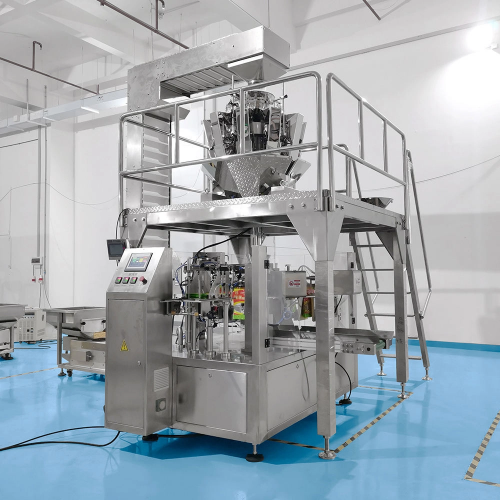

Automatic rotary pouch machine

The Pouch Rotary Packing Machine has good adaptability and flexibility. It can be compatible with various forms of materials by replacing the metering device and the contact material area, and supports multiple bag types and specifications.

The working principle of the rotary pouch packing machine

Bag retrieval and opening: Take out the pre-made empty packaging bags from the bag storage and open the bag openings through the bag opening device.
Filling materials: Accurately load the materials to be packaged into the opened packaging bags through the filling device.
Sealing: After the materials are filled, the packaging bags are sealed through a sealing device. Common sealing methods include heat sealing, cold sealing and ultrasonic sealing.
Rotation and conveying: Driven by the rotating components, the packaging bags pass through each workstation in sequence to complete the above packaging actions.

The rotary pouch Packaging machine is usually composed of a rotary worktable, a feeding device, a packaging bag forming device, a sealing device, a control system and other parts. The rotary worktable is its core component, with multiple workstations distributed on it. Each workstation is responsible for completing a specific process in the packaging process.
