Automatic Vertical Packaging Machine

option:
Share:
  • Product Description
Overview
Product Attributes

BrandHigh-Tech

Types OfWrapping Machine

Applicable IndustryFood &Amp; Beverage Factory, Farms, Food &Amp; Beverage Shops, Other

Out-of-warranty ServiceVideo Technical Support, Online Support

StatusNew

ApplicationFood, Beverage, Commodity, Medical, Machinery &Amp; Hardware

Type Of PackagingCartons, Cans, Bottles, Barrel, Stand-Up Pouch, Bags, Film, Pouch

Packaging MaterialsPlastic, Paper, Metal, Glass

Degree Of AutomationAutomatic

Power TypeElectric

Place Of OriginChina

Warranty Period1 Year

Core Selling PointHigh-Accuracy

Marketing TypeOrdinary Product

Mechanical Test ReportProvided

Video Factory InspectionProvided

Core Component Warranty Period1 Year

ModelVertical form-fill-seal machine HT-720

Packaging Speed≤60 bags/min

Bag-making SizeL100-500 mm W150-350mm

Place Of OriginGuangdong, China

Warranty Of Core Components1 Year

Machinery Test ReportProvided

Video Outgoing-inspectionProvided

Core ComponentsMotor, Engine

MaterialStainless Steel

Brand NameHigh-Tech

Supply Ability & Additional Information

PackagingWooden box

TransportationOcean,Land

Supply Ability30 Set/Sets per Month

PortShunde

Payment TypeL/C,T/T

IncotermFOB,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Wooden box

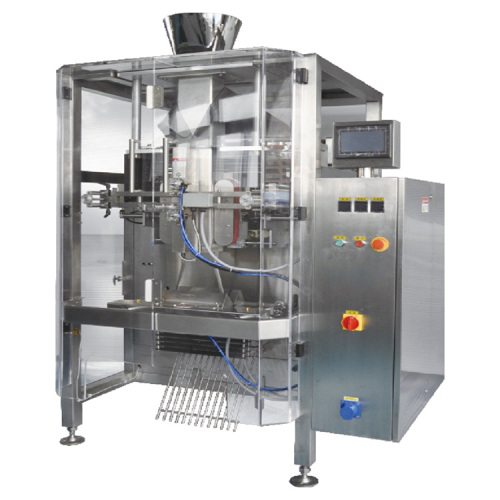

automatic vertical Packaging machine

Application For Form Fill Seal Packaging

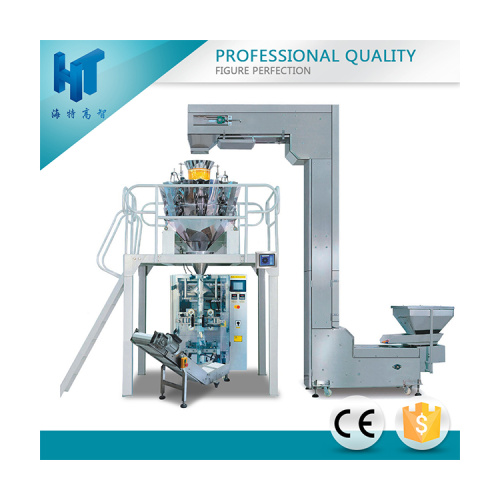

Completely automatic pouch packaging machines can automatically form, fill, and seal bags. An automatic pouch packaging machine can work with auger fillers for powdered materials, such as washing powder, milk powder, etc. Small pouch packaging machines can also work with linear or multi-head weighers for irregularly granulated materials, including puffed snacks, candy, etc.

Features For Form Fill and Seal Packaging

  • Computerized touch screen, easy to adjust and operate, and easy to change products, with an exception appearance system, allowing for easy and rapid repairs;
  • The movement of the horizontal sealing frame is controlled by a transducer, and the moving speed of the horizontal sealing frame can be adjusted voluntarily on the touch screen;
  • The encoder precisely controls the working time of the vertical seal, horizontal seal, cutting elements, etc., and these settings can be adjusted on the touch screen;

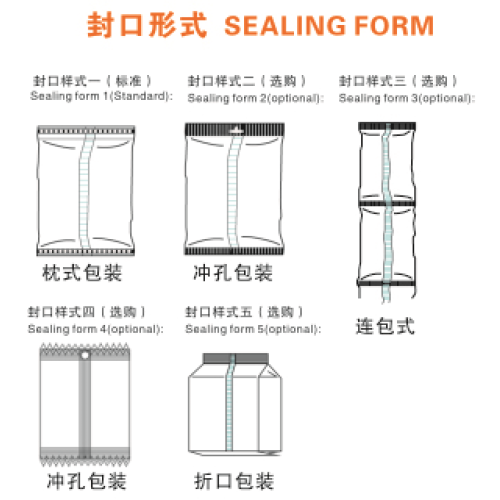

  • Can automatically complete bag-making, sealing, printing, and optional functions such as connected bags systems, European-style hole punching, nitrogen systems, etc.;
  • Equipped with alarms for missing materials, unsealed doors, incorrect film positioning, missing print tape, and missing rolls of film. Film running deviation can be adjusted on the touch screen;
  • The advanced design ensures convenience in adjustment, operation, and maintenance across various professions;
  • Compatible with various domestic and international automatic metering devices.

Form Fill Seal Packaging Specifications

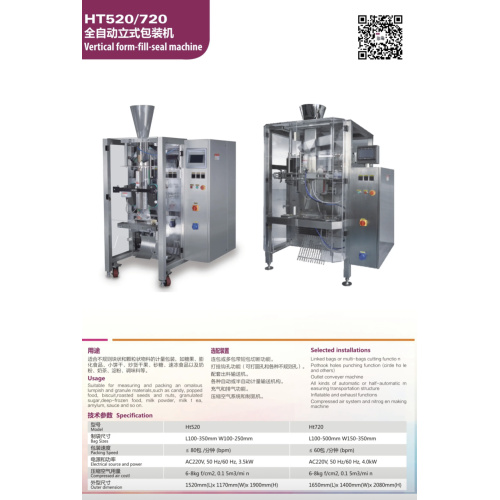

Product Name HT-720 Vertical Form-Fill-Seal Machine
Model HT-720
Packaging Speed ≤60 bags/min
Front Bag Middle Width 90-190 mm
Bag Sizes L100-500 mm W150-350mm
Packing Thickness 0.04-0.08mm
Electrical Source and Power AC220V, 50-60 Hz, 4KW
Compressed Air Cost 6-8kg f/cm², 0.15m³/min
Outer Dimensions L1650 x W1400 x H2080mm
