Brand: High-Tech
Types Of: Packaging Line
Applicable Industry: Food &Amp; Beverage Factory, Farms, Other, Food &Amp; Beverage Shops
Out-of-warranty Service: Video Technical Support, Online Support
Status: New
Application: Food, Beverage, Commodity, Medical, Machinery &Amp; Hardware
Type Of Packaging: Cartons, Cans, Bottles, Barrel, Stand-Up Pouch, Bags, Film, Pouch
Packaging Materials: Plastic, Paper, Metal, Glass
Degree Of Automation: Automatic, Semi-Automatic
Power Type: Electric
Place Of Origin: China
Warranty Period: 1 Year
Core Selling Point: High-Accuracy, Long Service Life, Sustainable, Automatic, Multifunctional, High Productivity, Flexible Manufacturing, Energy Saving, Easy To Operate
Marketing Type: Ordinary Product
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year

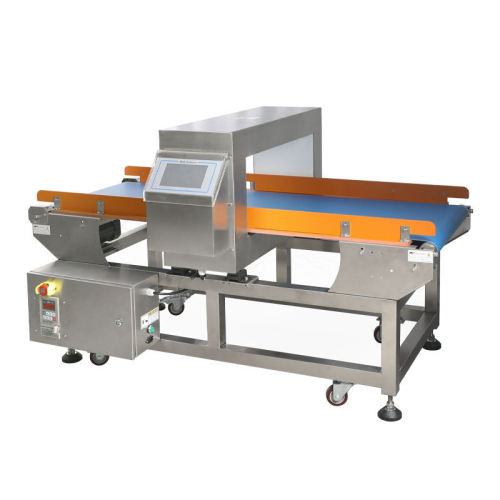

Model: Metal Detector
Converyor Speed: 27 meters/minute
Applicable Industries: Food & Beverage Factory
Machinery Test Report: Provided
Core Components: Motor, Engine
Material: Stainless Steel or Carbon Steel
Brand Name: High-Tech
Place Of Origin: Guangdong, China
Warranty Of Core Components: 1 Year
Video Outgoing-inspection: Provided
Packaging: Wooden box
Transportation: Ocean,Land
Supply Ability: 30 Set/Sets per Month
Port: Shunde
Payment Type: L/C,T/T
Incoterm: FOB,EXW
| Model | 3008 | 3012 | 3015 | 3018 | 4010 | 4012 | 4015 | 4020 | 5015 | 5020 | 5025 | 5030 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sensitivity FeΦ(mm) | 0.6 | 0.7 | 0.8 | 1.0 | 0.7 | 0.8 | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 | 2.0 |
| Sensitivity NFeΦ(mm) | 1.0 | 1.2 | 1.2 | 1.5 | 1.0 | 1.2 | 1.5 | 1.8 | 1.5 | 1.8 | 2.0 | 2.5 |
| Sensitivity SusΦ(mm) | 1.2 | 1.5 | 1.8 | 2.0 | 1.5 | 1.8 | 2.0 | 2.3 | 2.0 | 2.3 | 2.5 | 3.0 |
| Tunnel Height (mm) | 80 | 120 | 150 | 180 | 100 | 120 | 150 | 200 | 150 | 200 | 250 | 300 |
| Tunnel Width(mm) | 300/400/500 | |||||||||||
| Maximum Load | 5kg/15kg/50kg | |||||||||||
| Power Supply | 200V/380V | |||||||||||
| Conveyor Speed | 27 meters/minute | |||||||||||
| Alarm Method | Conveyor auto stop (standard) / Rejection System (optional) | |||||||||||
All around a food production plant, there is machinery and a great deal of that machinery is made of metal. Over time, that metal can rust, wear down, or break apart. And the resulting metal particles can find their way into food as it passes through the machinery. We carefully manufacture and certify each test piece so that our customers are guaranteed to get a quality product. And one that meets the standards of the food industry. And we can customize your pieces to fit your exact specifications. The purpose of Food Metal Detector Machine is to find those particles and prevent affected products from reaching the public. The process involved in a Metal Detector food inspection is really quite simple. Most food production takes place using some kind of conveyor system, gravity feed or inline processing, passing the product through various stages of preparation until it is packaged and sealed. A Food Manufacturing Metal Detector should be incorporated, ideally at the very end of this process, to carefully scan each product for the presence of any metal particles. If a particle is detected, then the product in question would be automatically rejected before it can be approved for shipping.
